Zenitron DC-DC PoE Module 30W

Share to

Zenitron DC-DC PoE Module 30W

【Zenitron Solution】Zenitron DC/DC PoE 30W模組

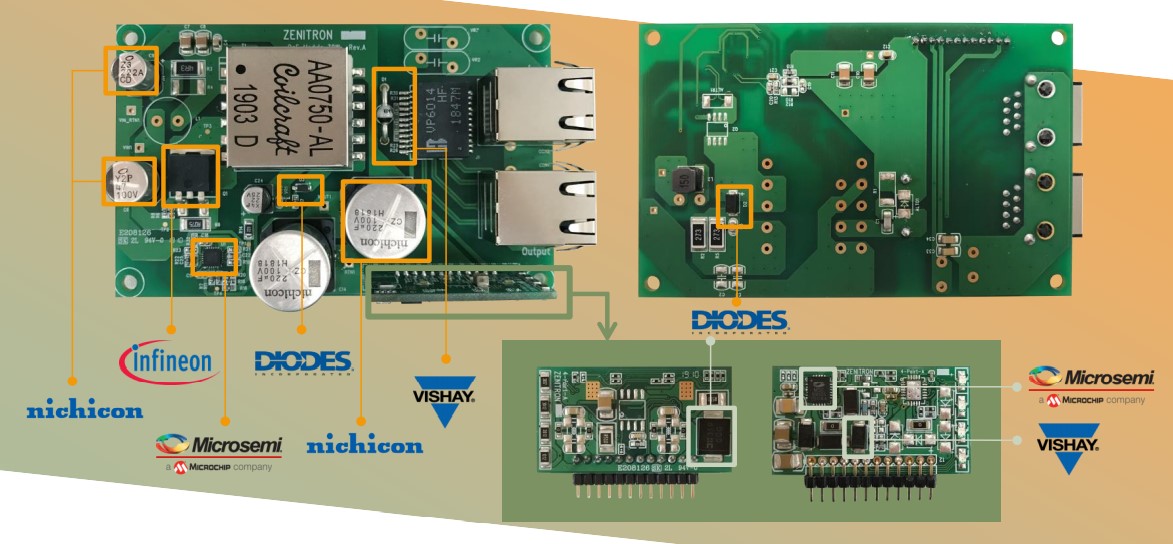

  • 增你強DC/DC PoE Module採用Microchip PES IC，並搭配nichicon的Input filter與Microchip/nichicon/Infineon/diodes的DC to DC方案，可應用於IP Camera, IP Phone, LAN switch, Rugged Computer/NB, Industrial Computer, POS machine, NAS …等等。

  • 增你強FAE團隊提供專業技術諮詢服務，為客戶解決產品在測試、使用、量產所遇到的問題，縮短產品研發時程及零元件的搭配，主動提供完整的技術資料，以支援客戶開發設計的工作，縮短研發時程。

Solution Feature Description

  • 37V to 57V Input range Non-isolated Flyback converter with 30W of output power
  • VIN UVLO configured to 42V (rising edge), 36V (falling edge)
  • The evaluation board is configured to operate at 200kHz switching frequency
  • 54V at 0.6A output
  • Efficiency up to 86% @54V 0.6A
  • Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant
  • Supports 2 Pairs and 4 Pairs (Data and Spare Power Feeding)
  • Over-temperature protection
  • Wide temperature range: -40° to +85° C

Applications

  • IEEE802.3at and IEEE802.3af powered devices such as IP phones, WLAN Access Points and Network Cameras.
  • 48V Input Telcom/Networks Hot Swappable Power Supply.

Solution Feature Description

  • 37V to 57V Input range
  • 54V at 0.6A output
  • Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant
  • Configurable AT/AF modes
  • Option : for 7W power limit
