Zenitron AC DC PoE Module 60W

【Zenitron Solution】Zenitron AC/DC PoE 60W模組

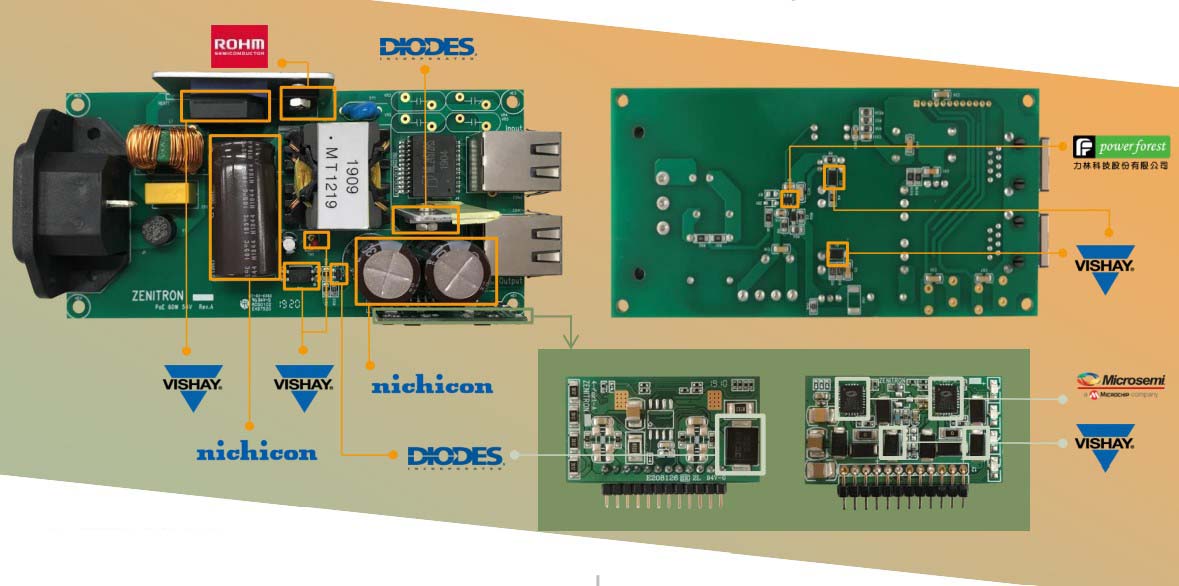

增你強AC/DC PoE Module採用Microchip PSE IC，並搭配Vishay/nichicon的Input Rectifier/filter與diodes/ ROHM/Vishay 的AC to DC方案，可應用於IP Camera, IP Phone, LAN switch, Rugged Computer/NB, Industrial Computer, POS machine, NAS …等等。

增你強FAE團隊提供專業技術諮詢服務，為客戶解決產品在測試、使用、量產所遇到的問題，縮短產品研發時程及零元件的搭配，主動提供完整的技術資料，以支援客戶開發設計的工作，縮短研發時程。

Solution Feature Description

1. 110 to 240VAC Input range isolated Flyback converter with 60W of output power

2. The evaluation board is configured to operate at 200kHz switching frequency

3. 54V at 1.1A output

4. Efficiency up to 88% @54V 1.1A

5. Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant

6. Supports 2 Pairs and 4 Pairs (Data and Spare Power Feeding)

7. Over-temperature protection

8. Wide temperature range: -40°to +85° C

Applications

1. IEEE802.3at and IEEE802.3af powered devices such as IP phones, WLAN Access Points and Network Cameras

2. 48V Input Telcom/Networks Hot Swappable Power Supply

Solution Feature Description

1. 110 to 240VAC Input range

2. 54V at 1.1A output

3. Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant

4. Configurable AT/AF modes

5. Supports 2 Pairs and 4 Pairs (Data and Spare Power Feeding)
