100W Hair Dry 110,000RPM 3 Phase BLDC Control

Zenitron Solution 100W Hair Dry負離子吹風機參考設計採用Cypress MCU, 搭配Infineon IPM與Diodes, nichicon, Vishay等電源解決方案

100W Hair Dry負離子吹風機參考設計擁有強勁大風量(110,000rpm+高轉速)、1秒重新啟動、三種風速與熱風控制…等產品特性，並具備過電壓、過電流、溫升保護機制，提升產品可靠度。

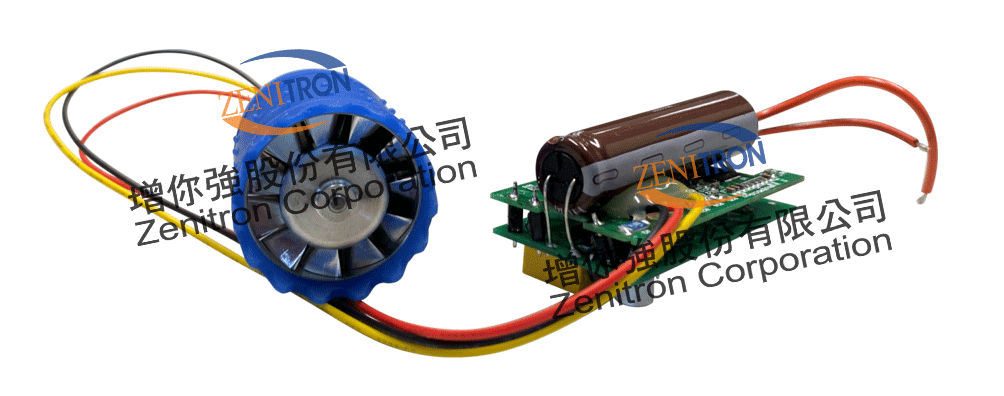

Solution Feature description

Smallest Size:52mmX29mm
High integration (MCU+IPM 2 in 1)
High Voltage(DC310V), High Speed(110,000rpm+)
BLDC smallest power consumption BLDC (100W) VS FOC Algorithm (120W)
1s fast re-start
3-Stage Speed
Anion Control
Heat control

Specification description

AC Input: 180-242V/50Hz 1A 100W
Motor Control: 3-Phase BLDC, 2-Pole, 110,000rpm, BLDC Algorithm
Adj. Protection: OVP, OCP, OTP

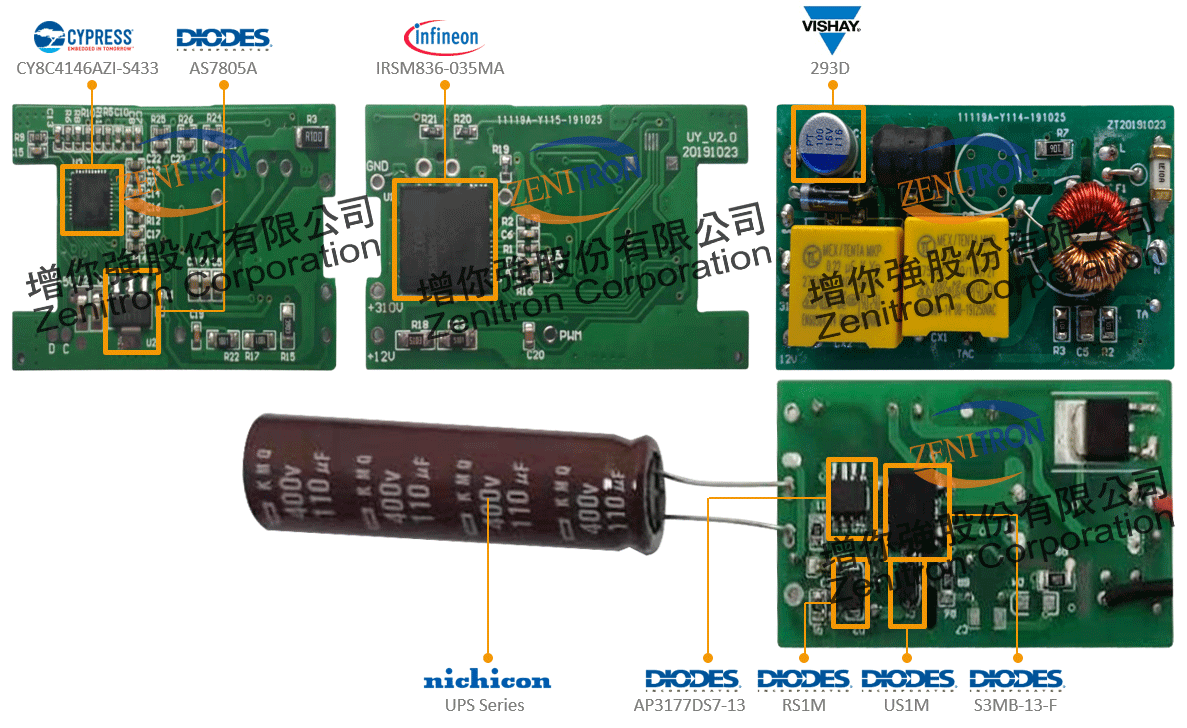

Main Components

Part Type	Brand	Part Number	Description
DC/DC PowerSupply	DIODES	D-AP3177DS7-13	Step down Power Switcher, AC 85-265V Input,Internal 700V Mosfet, 300mA Output Current…
DC/DC PowerSupply	DIODES	D-US1M-13-F	Ultra-Fast Diode, 1000V/1A,SMA
Power Stage(IPM)	Infineon	IRSM836-035MATR	Integrated Power Module 3A/500V for Small Appliance Motor Drive Applications
