Solution Feature Description
- Small size:9cm*5.5cm
- Ultra low power consumption (Standby mode <13.5uA operation current)
- Enable security boot, data and communication security
- Run FP sensor algorithm( IDH support )
- Support up to 1G external memory size
- Motor control firmware support DC , BLDC (Sample code)
- Integrate DAC for Audio amp IC (External component)
- 6-axis Motion Tracking sensor support security function and wearable device.

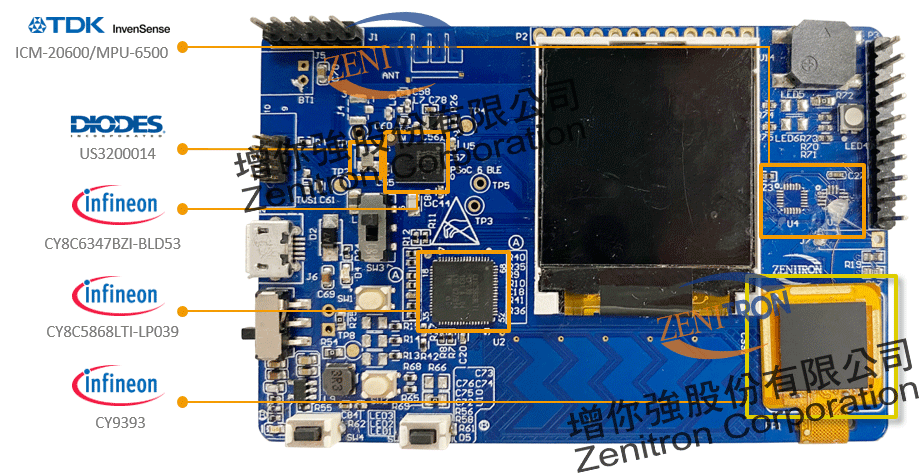

- Highest integration:
- Power supply: Micro-B USB 5V
- FP sensor resolution: 192*192 pixel
- TFT LCD size and interface: 1.44" with SPI
- Bluetooth: BLE 5.0
- MCU Integrate : SL nand Flash 1MB
- External 512MB nor Flash
- 6-axis Motion Tracking sensor :
