Solutions Industrial Electronics Solutions 1.5P Power Board for Air Conditioning

1.5P Power Board for Air Conditioning

應用範圍:

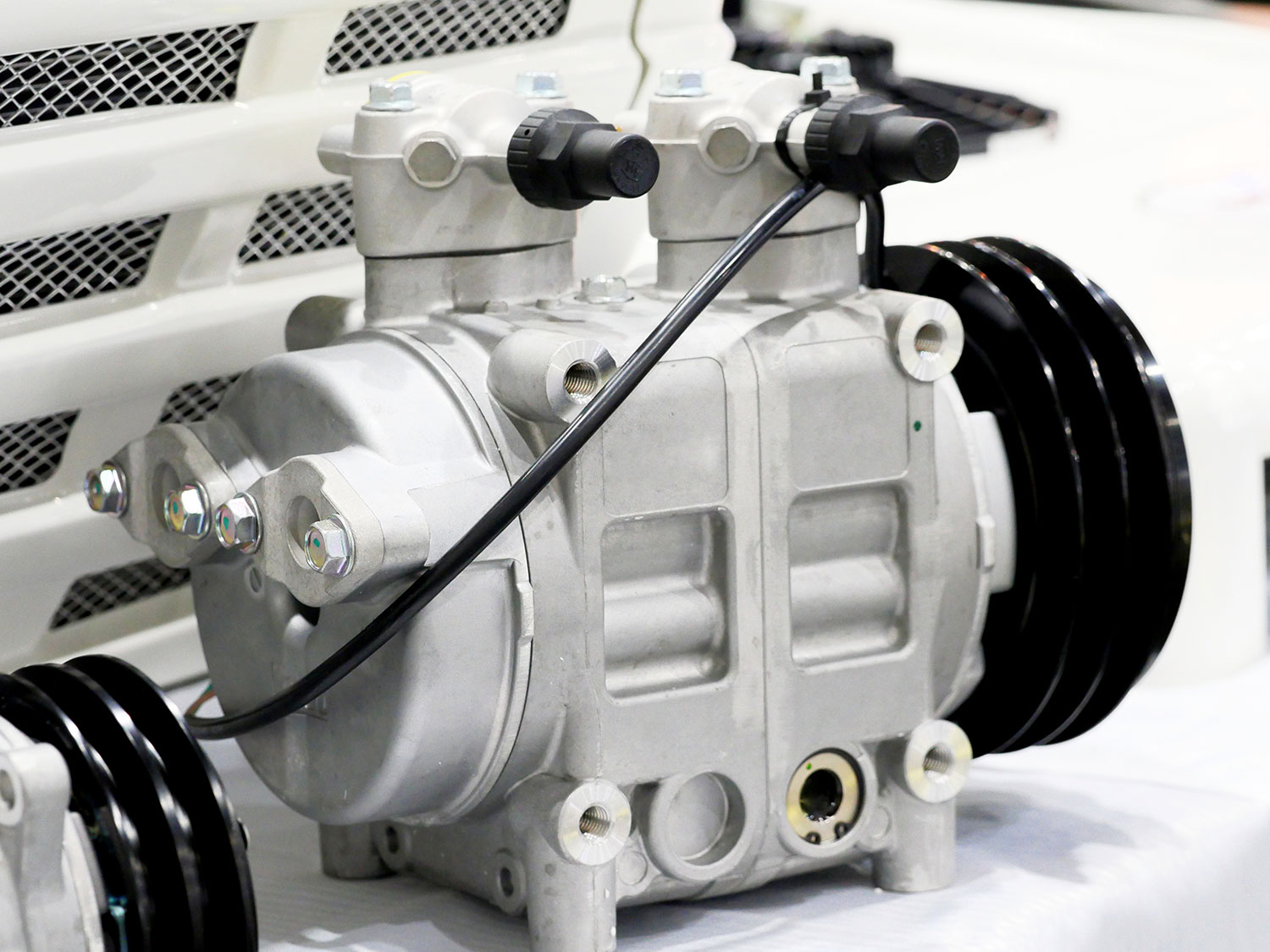

  • 空調壓縮機
  • 工業伺服電機


使用器件:

  •  ROHM BM63764S-VA
  •  Diodes GBJ1506
  •  Vishay VS-EPH3006-N3


Demo規格說明:

  •  Vin：65~264VAC
  •  Pout：750W~2.5KW
  •  PF>99%
  •  FOC 控制算法
  •  OVP：380V
  •  OCP：12A（15A IPM）
  •  OTP：105 °C

Main Components

Contact Us

Part Type

Brand

Part Number

Description

DC Bus

nichicon

LGN2W561MELANH

E-Cap, 560uF/450V

Rectifier & EMI Filter

DIODES

D-RS1MSWFQ-7

fast rectifier diode,1000V/1A,SMA

Rectifier & EMI Filter

DIODES

D-1N4148W-7-F

Switching diode,100V/150mA,SOD-123
Find More Solutions
PREV
Zenitron DC-DC PoE Module 30W
NEXT
2P Power Board for Air Conditioning
