Zenitron AC DC PoE Module 60W

增你強AC/DC PoE Module採用Microchip PSE IC，並搭配Vishay/nichicon的Input Rectifier/filter與diodes/ ROHM/Vishay 的AC to DC方案，可應用於IP Camera, IP Phone, LAN switch, Rugged Computer/NB, Industrial Computer, POS machine, NAS …等等。
增你強FAE團隊提供專業技術諮詢服務，為客戶解決產品在測試、使用、量產所遇到的問題，縮短產品研發時程及零元件的搭配，主動提供完整的技術資料，以支援客戶開發設計的工作，縮短研發時程。

Applications

IEEE802.3at and IEEE802.3af powered devices such as IP phones, WLAN Access Points and Network Cameras.
48V Input Telcom/Networks Hot Swappable Power Supply.

Specification Description

110 to 240VAC Input range
54V at 1.1A output
Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant
Configurable AT/AF modes
Supports 2 Pairs and 4 Pairs (Data and Spare Power Feeding)

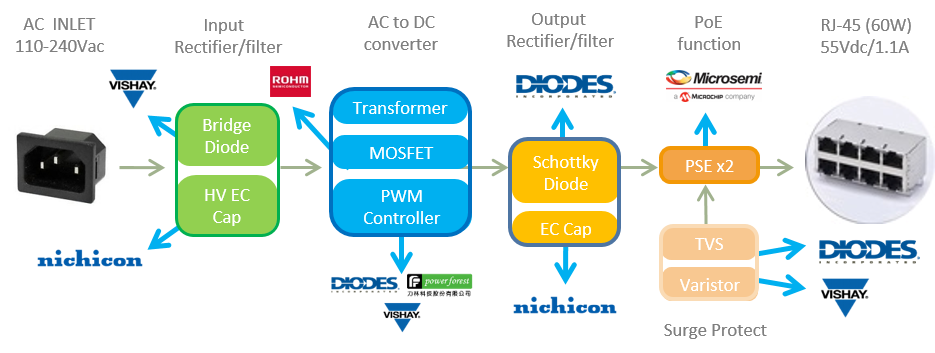

Solution Feature Description

110 to 240VAC Input range isolated Flyback converter with 60W of output power
The evaluation board is configured to operate at 200kHz switching frequency
54V at 1.1A output
Efficiency up to 88% @54V 1.1A
Fully IEEE802.3af-2003 and IEEE802.3at-2009 compliant
Supports 2 Pairs and 4 Pairs (Data and Spare Power Feeding)
Over-temperature protection
Wide temperature range: -40°to +85° C

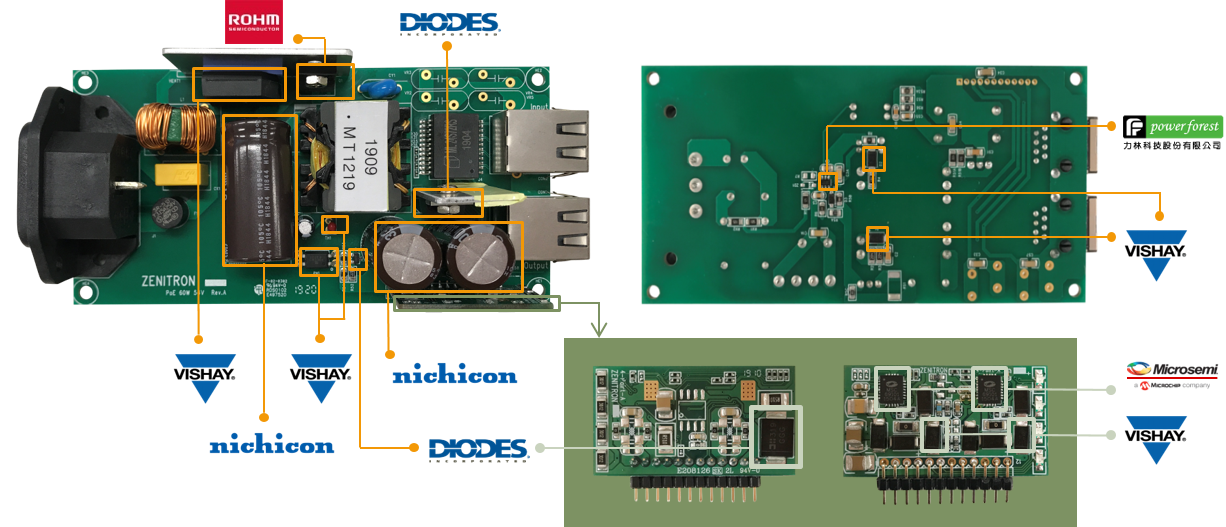

Main Components

Part Type	Brand	Part Number	Description
AC to DC	ROHM	R6011ENXC7	NMOS 600V 11A TO-220FM
AC to DC	Vishay	1N4148W-E3-08	DIODE 75V 150mA Trr=4ns SOD-123
AC to DC	Vishay	VOL617A-3X001T	PHOTO CTR=130-260 DIP4 P=7.62
AC to DC	Power Forest	PF6000AMG	Flyback Controller IC SW=100KHz
Input Rectifier/filter	nichicon	UCP2W101MHD	EC 100u 450V M 105 18x33.5 P=7.5
PoE	Microchip	PD69101ILQTR	Meidan, 1 Port PSE IC
Surge Protect	DIODES	D-SMCJ58A-13-F	Surface Mount TRANSZORB Transient Voltage Suppressors SMC
